Service Room Fire Doorsets External

External walls form the envelope of any building, protecting everything inside. Our external service room doorsets are a continuation of that protection. Designed for compliance with building standards, providing good insulation, whilst also offering fire resistance and security. These robust doorsets enable Fire and Rescue Service access through our high-end emergency access systems.

Extensively tested in single and double doorset configurations, the doorsets are produced in sustainable engineered timber with an environmentally friendly three-coat durable finishing process.
Tailored to exact sizing through our digital survey app, these doorsets are precision-manufactured for the complete ready-to-install solution.



Swipe for more of our creditations for doorsets

Logo 0
Logo 1
Logo 2

Call 01638 711028
to discuss your fire
and security needs

Send a message >
Service Rooms External

Click for more Service Room External Doorsets

EI30 Sa
E60 EI45 Sa

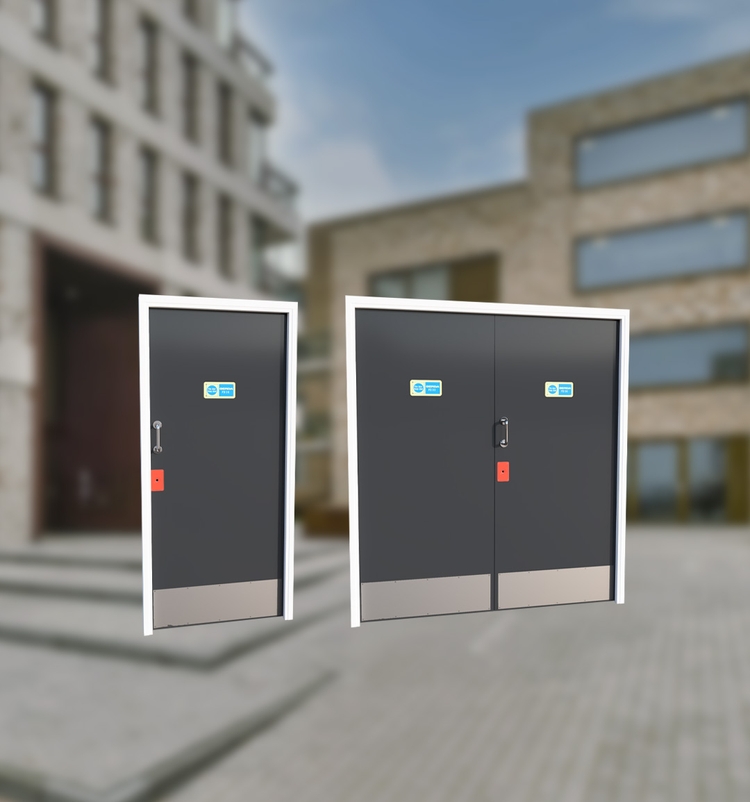

Service Room Fire Doorsets External (EI30 Sa)

  • EI30 Sa
  • Extensive range of Gerda Security-owned primary fire & smoke test evidence
  • Building regulation compliant for fire resistance, smoke control & acoustics
  • Designed for overrun in fire tests
  • Glazed and solid single doorsets
  • Range of frame configurations
  • Ease of access options
  • Furniture options
  • Innovative features as standard
  • G-Smart™ as standard
EI30 Sa
Tap Hotspot to find out more
Excellent thermal transmittance design, surpassing building regulation requirements of 1.8 W/m²K
Excellent thermal transmittance design, surpassing building regulation requirements of 1.8 W/m²K
● Solid & glazed options offer 1.5 W/m²K ● Precision manufacturing for exact tolerances ● Assisting closure, option of door closers available ● Inward and outward opening options ● Complete finished doorsets ready to fit
Robust design includes careful thought about component parts. Our hinges offer superb performance, extending the doorset lifetime:
Robust design includes careful thought about component parts. Our hinges offer superb performance, extending the doorset lifetime:
● Highly corrosion resistant grade 304 ● Low friction for consistent & smooth movement ● Tested to 200,000 cycles ● Smart satin chrome finish

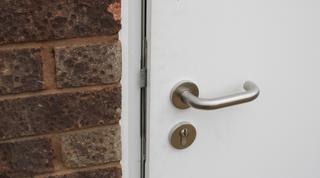

Service room doorsets are designed with function in mind and offer the specifier versatility:
Service room doorsets are designed with function in mind and offer the specifier versatility:
● Modern-looking aesthetics ● Option of handles / levers & suiting of locks ● Robust locking systems with Fire & Rescue Service access ● Additional features for longevity
Smart threshold design in doorsets covers draught prevention, and protects excessive heat and rainwater from penetrating the entranceway:
Smart threshold design in doorsets covers draught prevention, and protects excessive heat and rainwater from penetrating the entranceway:
● Hardwood cills with aluminium thresholds ● Low profile thresholds to assist access ● Raised aluminium thresholds to repel weathering ● Rain deflectors
<p>Fire Resistance

Fire Resistance

BS EN 1634~1 tests

<p>Smoke Control

Smoke Control

BS EN 1634~3 tests

<p>Acoustics

Acoustics

ISO EN 10140~2 tests

<p>Thermal Transmittance

Thermal Transmittance

ISO EN 10077 tests

<p>Weathering

Weathering

BS 6375 ~1 tests

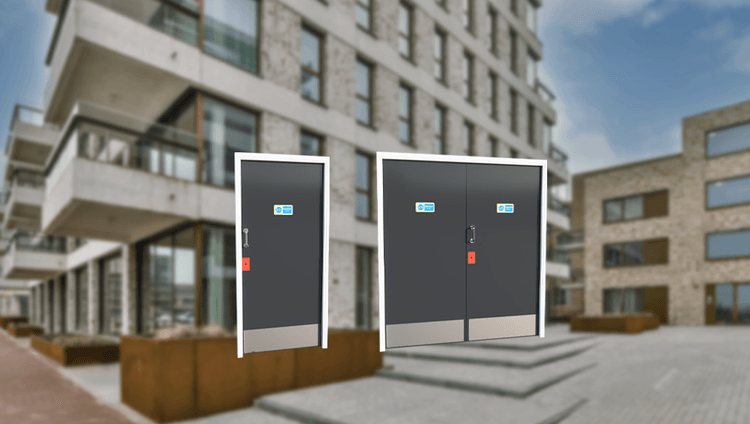

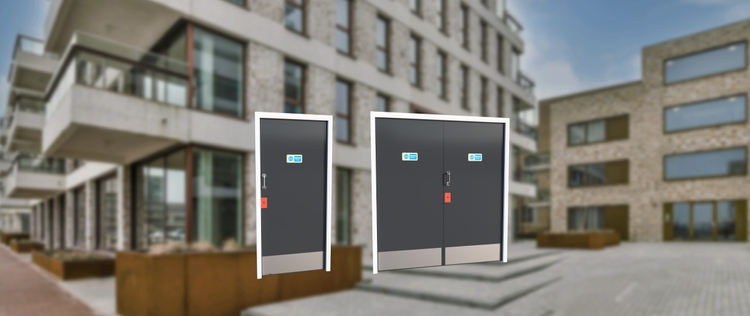

Service Room Fire Doorsets External (E60 EI45 Sa)

  • E60 EI45 Sa (double doorsets); E60 EI30 Sa (single doorsets)
  • Extensive range of Gerda Security-owned primary fire & smoke test evidence
  • Building regulation compliant for fire resistance, smoke control & acoustics
  • Designed for overrun in fire tests
  • Single & double solid doorsets
  • Range of frame configurations
  • Ease of access options
  • Furniture options
  • Innovative features as standard
  • G-Smart™ as standard
E60 EI45 Sa
Tap Hotspot to find out more
Exterior doorset matters in reducing a building's carbon footprint. Both single & double offer:
Exterior doorset matters in reducing a building's carbon footprint. Both single & double offer:
● 1.5 (single) and 1.8 (double) U values ● UKCA marked doorsets ● Fast access through the H System to the Fire & Rescue Service in an incident ● H System offers proven performance for over 15 years
Sealing to structure forms an important aspect of doorset performance and we offer:
Sealing to structure forms an important aspect of doorset performance and we offer:
● Tested sealing to structure options to cater for the built environment ● Comprehensive Installation instructions based on test evidence ● Hardwood wedges/packers from manufacturing offcuts to assist with positioning ● Tested frame solutions to bridge unexpected gap
Robust timeless designs with choice of hardware:Robust timeless designs with choice of hardware:
Robust timeless designs with choice of hardware:Robust timeless designs with choice of hardware:

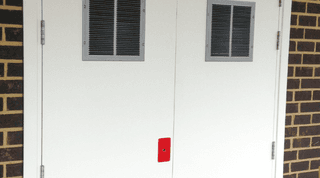

● Ventilation grills (smoke control n/a) ● Locking systems with/without FRS access ● Stainless steel kick plates & push plates ● Rain deflectors ● Handles
Designed for resilience, single & double doorsets are tailored to size for existing build and new build:
Designed for resilience, single & double doorsets are tailored to size for existing build and new build:
● Double: 1 hour fire resistance ● Double: 45 minutes fire insulation ● Double: 1.8 W/m²K thermal transmittance ● Single: 1 hour fire resistance ● Single: 30 minutes fire insulation ● Single: 1.5 W/m²K thermal transmittance
<p>Fire Resistance

Fire Resistance

BS EN 1634~1 tests

<p>Smoke Control

Smoke Control

BS EN 1634~3 tests

<p>Acoustics

Acoustics

ISO EN 10140~2 tests

<p>Thermal Transmittance

Thermal Transmittance

ISO EN 10077 tests

<p>Weathering

Weathering

BS 6375~1 tests

Click for more Service Room External Doorsets

Got a question about this product? Call 01638 711 028 or send us a message

Swipe through to see more

Sustainability
FRS Accessibility
Critical Safety Product
Sustainability

Sustainability

Buildings vary in construction, design and substrate.

Our comprehensive and substantial library of test evidence underlies our capability to provide tailored doorsets compliant with the various buildings’ regulations and legislation.

Our survey module powered by the in-built doorset life-cycle App G-Smart, is used by our teams of surveyors, as well as third party contractors and developers. It determines the doorset requirements within Gerda Security test evidence remit and certification.

At point of survey, each doorset is allotted its unique code which follows throughout its lifetime.

Installation, maintenance and repairs are all addressed through G-Smart, providing the ‘golden thread’ of the doorset’s lifetime.

FRS Accessibility

FRS Accessibility

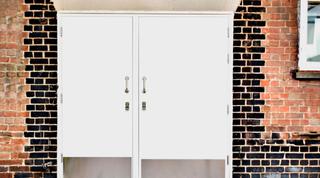

Service rooms often secure important equipment fundamental to the functioning of the building.

This may be a boiler room or an electrical intake room. Where this is the case, it is likely that in the event of an emergency, the Fire and Rescue Service (FRS) need to gain access.

The H System is the widely recognised Fire and Rescue Service locking system. Delivering high performance & proven longevity, this security kitemarked, SBD locking system, is a recognised focal point for firefighters.

Through their GSP One Key® system, they access all H System locks, whilst each Building Provider will have their own suited locking system with their own keys.

Critical Safety Product

Safety

Fitting perfectly into its building opening, the doorset becomes an extension of the building envelope.

Which is why it’s important that the doorset design incorporates the necessary performance criteria for not only fire resistance and smoke control, but also thermal transmittance.

Our UKCA marked doorsets comply with national building regulation requirements, whilst also meeting the stipulations of the Construction Products Regulation and its designated standard for external fire doorsets.

Our external fire rated service room doorsets are also critical safety products under the Building Safety Act, as they comply with the designated standard and have our manufacturer’s Declaration of Performance.
